Venturi Effect
Private Residence in Coconut Grove Florida
Program………………Residential
Location………………Miami
Area…………………….4000 sf
Status………………….Completed
The remodeling of this 1956 home was initiated to preserve a large 120-year-old live oak tree that was endangered by its growth coming into contact with the existing house. This tree is one of a group of live oaks which provide substantial shade to the house and the rest of the property.
The new proposed structure and site plan were designed to preserve all trees on the site. The wildlife habitat in these areas has been severely impacted by development along the Miami Rock Ridge and Pine Rocklands have been designated as “globally imperiled habitat”.
“For certain, living in this house makes me think of your team often and appreciate the great job done here! The house is bright, airy when we want that, and each time I go up the stairs I appreciate the great job especially given all of the restrictions.”
“During the shutdown, I transferred my office activities to the loft with the balcony for a break when needed… superb!”
-Greg Conner (Owner)

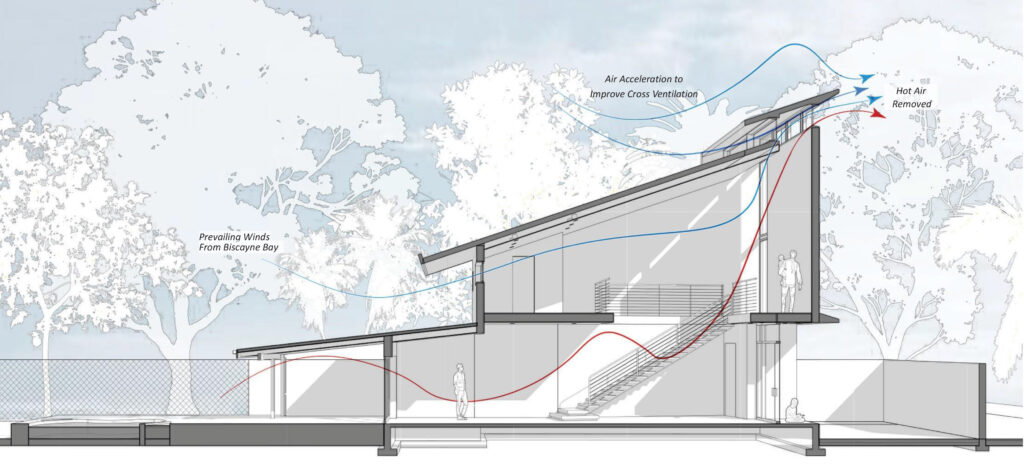

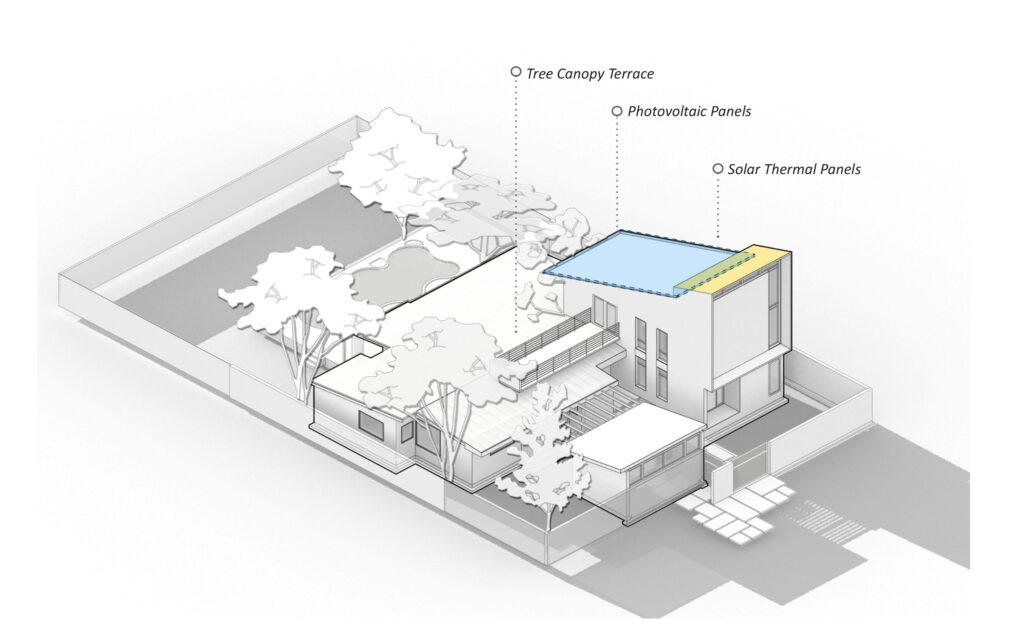

The proposed plan significantly reduces the home’s carbon footprint both by the creation of a new addition that rises above the tree canopy to incorporate solar electric and solar thermal panels and by the renovation of the existing structure to reduce the amount of energy and water consumption. Inherent in this plan is the introduction of natural light and optimal ventilation through the careful placement of openings and spaces, which allow the penetration of strategic daylight and encourages the acceleration of breezes through the house using the principles of the Venturi Effect.

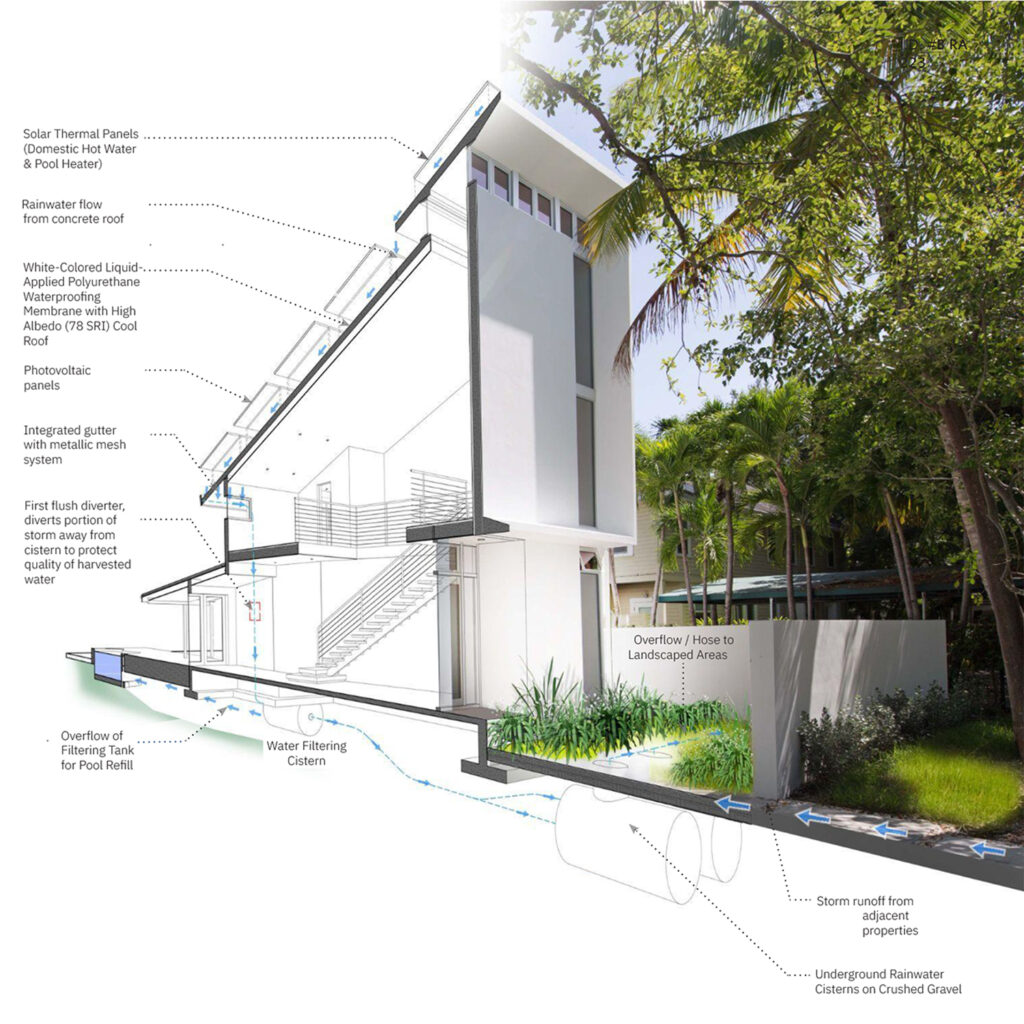

The plan is also designed to control storm water runoff from nearby lots that lack permeable vegetated space, using a system of vegetated raingrdens and bioswales which filter surface contaminants and store rainwter in a reflecting pool where it can be utilized by wildlife. The home also controls runoff from the current and additional proposed structure, by collecting rain from the roof to be used within the home, thus generally fulfilling water conservation goals set in the Water Star program of the South Florida Water Management District.
